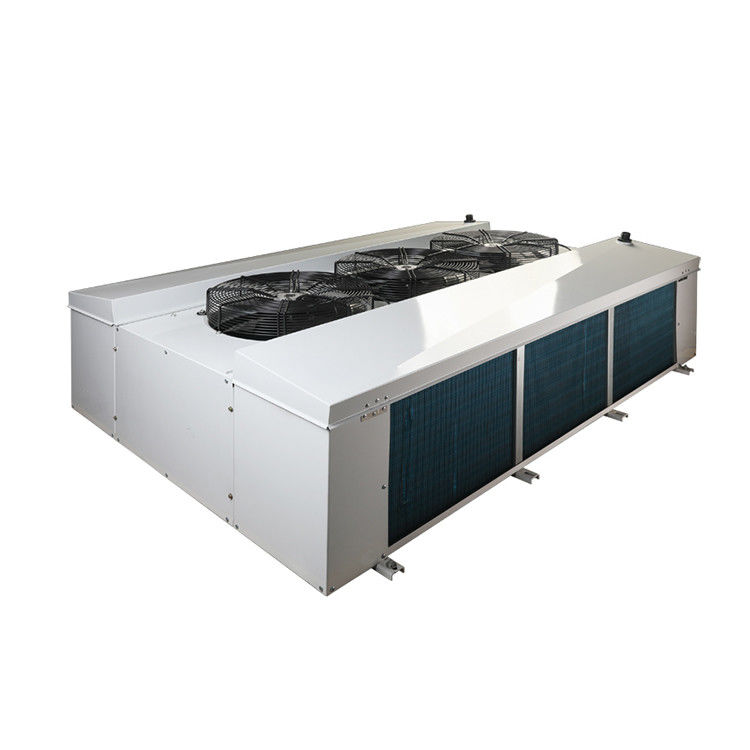

Large heat transfer area, slow frosting speed, and high anti-corrosion industrial ethylene glycol dual outlet cold air fan can be selected as the fan

Overview of EDG series industrial ethylene glycol dual outlet air cooler products

  The EDG series air cooler developed by our company adopts a structure of bottom air intake and two side air supply, mainly used for cooling cold storage with ethylene glycol aqueous solution as the refrigerant
Equipment. The low-temperature ethylene glycol aqueous solution circulates in the heat exchange tubes of the air cooler, absorbing external heat to achieve the goal of reducing the storage temperature. The EDG series air coolers can meet the needs of cold storage at around 10 ℃, 0 ℃, and -18 ℃, respectively.
1. Shell: Made of high-quality galvanized steel plate surface spray painted (silver gray RAL9006), with strong anti-corrosion performance; The external water tray adopts a hinged structure, which is easy and fast to operate;
2. The end plate of the heat exchanger is made of aluminum plate, which effectively protects the copper tube and reduces weight;
3. Double layer water tray design: The outer water tray adopts an angular structure with angles, ensuring smooth drainage and no dead corners; The inner water tray adopts an aluminum plate sink type structure, and condensed water or defrosting water is directly discharged into the outer water tray drainage outlet through the inner water tray;
4. Coil: arranged in a square with a spacing of 50x50 between tubes, it has a large heat transfer area, small heat transfer temperature difference, low food drying consumption, and slow frosting speed of fins;
5. Hydrophilic aluminum foil corrugated aluminum sheet with sheet spacing of 4.0mm, 6.0mm, and 9.0mm, meeting different temperature and humidity requirements;

6. Fan: External rotor fan in the form of blowing, operating temperature -30 ℃~60 ℃; The fan specifications are Ø 450 and Medium 500, forming different product series with different specifications, providing users with more choices;
7. Defrosting: The standard uses electric defrosting, with stainless steel heating tubes evenly distributed in the fins of the coil and on the inner water plate. The heating tube holes of the coil are equipped with aluminum sleeves to improve defrosting efficiency;
8. The fan and heating tube adopt independent IP65 waterproof junction boxes, which have better waterproof effect and high reliability in use;
9. Strict pressure test, with a test pressure of 23 bar;
